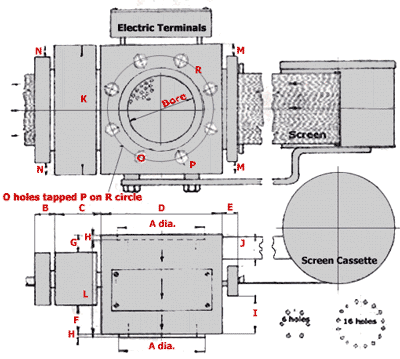

AutoScreen Dimensions - IMPERIAL UNITS |
|
| Bore |
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
O
|
P
|
R
|
| 2" |
2-7/8
|
1
|
2
|
4-3/4
|
1
|
3/4
|
1/2
|
3/16
|
3/4
|
3/4
|
4-3/4
|
3-3/4
|
1/4
|
1/2
|
6
|
1/2
|
3-3/4
|
| 2-1/2" |
3-1/2
|
1-1/4
|
2-1/4
|
5-1/4
|
1
|
1-1/2
|
3/4
|
3/16
|
1-1/4
|
1
|
5-3/4
|
4-5/8
|
1/4
|
1/2
|
6
|
1/2
|
4-5/16
|
| 3-1/2" |
4-1/2
|
1-1/4
|
3
|
7
|
1
|
1-1/4
|
3/4
|
1/4
|
1-3/4
|
1-3/4
|
7-1/4
|
5-3/4
|
1/2
|
3/4
|
8
|
5/8
|
5-7/8
|
| 4" |
5-1/8
|
1-1/4
|
3
|
7-1/2
|
1
|
1-1/2
|
3/4
|
1/4
|
1-3/4
|
1-3/4
|
8
|
5-3/4
|
1/2
|
3/4
|
8
|
3/4
|
6-1/2
|
| 4-1/2" |
5-3/4
|
1-1/4
|
3
|
8
|
1
|
1-3/4
|
1
|
1/4
|
2-1/4
|
2
|
8-3/4
|
6-5/8
|
3/4
|
3/4
|
8
|
3/4
|
7
|
| 6" |
7-7/8
|
1-1/4
|
4-3/4
|
11-1/2
|
1-1/4
|
1
|
1-1/4
|
5/16
|
2-1/4
|
2-1/2
|
12-3/4
|
7-1/8
|
1-3/4
|
1-3/4
|
8
|
1
|
10
|
| 8" |
10-1/8
|
1-1/2
|
6
|
14-3/4
|
3
|
1-3/4
|
1-1/4
|
3/8
|
2-3/4
|
3
|
14-3/4
|
8-7/8
|
2-1/4
|
2-1/4
|
16
|
1
|
12
|
|
AutoScreen Dimensions - METRIC UNITS |
|
| Bore |
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
O
|
P
|
R
|
| 45mm |
70 |
25 |
51 |
120 |
25 |
22 |
12 |
4 |
22 |
20 |
120 |
95 |
6 |
16 |
6 |
M12 |
95 |
| 50mm |
75 |
25 |
51 |
120 |
25 |
22 |
12 |
4 |
22 |
20 |
120 |
95 |
6 |
16 |
6 |
M12 |
95 |
| 60mm |
90 |
32 |
58 |
132 |
25 |
32 |
18 |
4 |
35 |
28 |
145 |
116 |
10 |
16 |
6 |
M12 |
110 |
| 75mm |
100 |
32 |
76 |
155 |
25 |
35 |
18 |
4 |
40 |
35 |
165 |
130 |
12 |
18 |
8 |
M12 |
130 |
| 90mm |
114 |
32 |
76 |
178 |
25 |
38 |
18 |
6 |
48 |
44 |
184 |
145 |
16 |
20 |
8 |
M16 |
149 |
| 100mm |
130 |
32 |
76 |
190 |
25 |
38 |
18 |
6 |
48 |
44 |
205 |
145 |
16 |
20 |
8 |
M20 |
165 |
| 120mm |
150 |
32 |
76 |
215 |
25 |
48 |
28 |
6 |
60 |
54 |
235 |
168 |
25 |
20 |
8 |
M20 |
190 |
| 150mm |
200 |
32 |
120 |
280 |
28 |
28 |
28 |
8 |
60 |
63 |
325 |
180 |
48 |
44 |
8 |
M24 |
254 |
| 200mm |
255 |
35 |
148 |
375 |
76 |
46 |
30 |
10 |
74 |
78 |
375 |
225 |
40 |
60 |
16 |
M24 |
305 |
|
|
|
|
